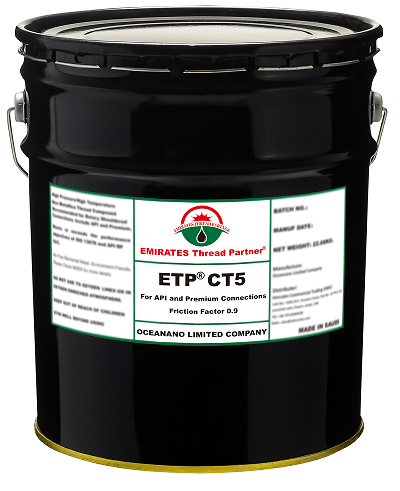

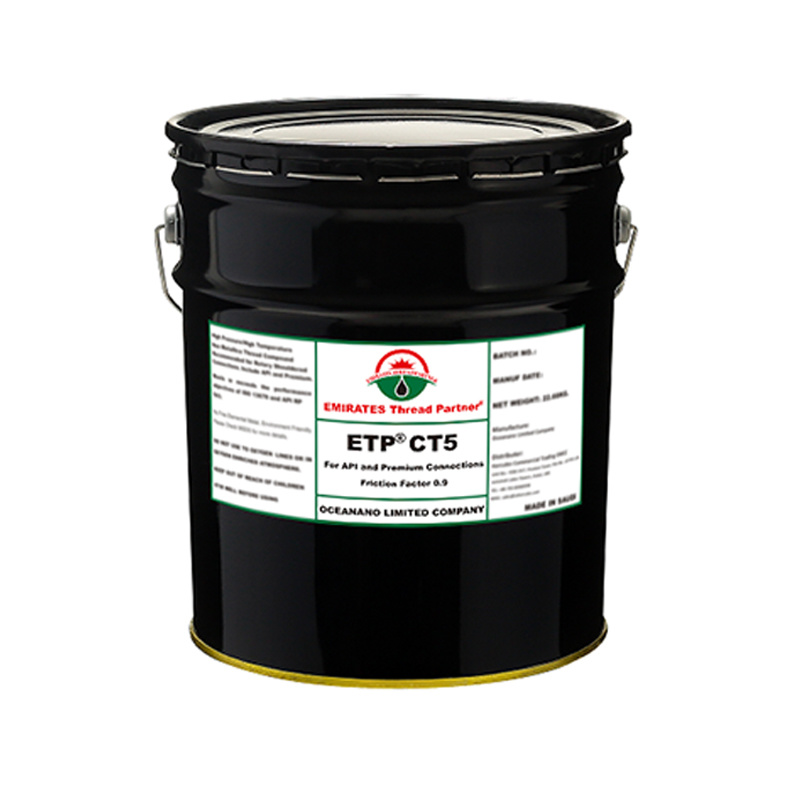

EMIRATES Thread Partner^® CT5

Product Description

EMIRATES Thread Partner^® CT5 is an excellent running/make-up thread compound, the performance meet or exceed the listed performance objectives in API RP 5A3/ISO 13678. It is a lead free and zinc free thread compound for HPHT work condition of casing, tubing and line pipe with premium connection and API connections. Special formulated to provide excellent make-up, superior protection to galling, anti-rust, pitting, Special inhibitors to H₂S and CO₂ and for mid-term storage.

Recommended Application

EMIRATES Thread Partner^® CT5 is a lead free and zinc free thread compound, recommended for Premium Connection and API connection running/make-up, include some special condition, HPHT, H₂S and CO₂ work conditions.

Packing

Product Number	Size	Weight
ETPCT55	5 Gallon	45 lb

Typical Characteristics

Appearance	Dark Copper
NLGI Grade	1
Penetration (ASTM D217)	320-350
Weight/Litre	1.3 Kg/L
Thickener	Complex
Fluid Type	Petroleum
Dropping Point (ASTM D2265)	≥260℃ (≥500℉)
Flash Point	≥200℃ (≥392℉)
Service Rating	-18℃-260℃ (-0.4℉-500℉)
Friction Factor	0.9
4-ball EP Test, Kgf	800
Copper Corrosion (ASTM D4048)	1A
Corrosion inhibition, 5% Salt Spray 750h	<1.0
Compound stability, field service	≤25
Shelf Life (unopened)	4 years
Brushable	-18℃ (-0.4℉)
Contains	Copper flake, Graphite, nonmetallic materials

Do not use on oxygen lines or in oxygen enriched atmospheres
