PRODUCT

API EP

EMIRATES Thread Partner® API EP is API Modified thread compound for connection of casing, tubing, and line pipe. It delivers thread protection and conforms to the listed performance objectives in API RP 5A3/ISO13678. This superior metallic compound protects against connection galling and provides higher temperature performance.

Category:

Emirates

Hotline:

+86-731-88841990

Return to List

Message

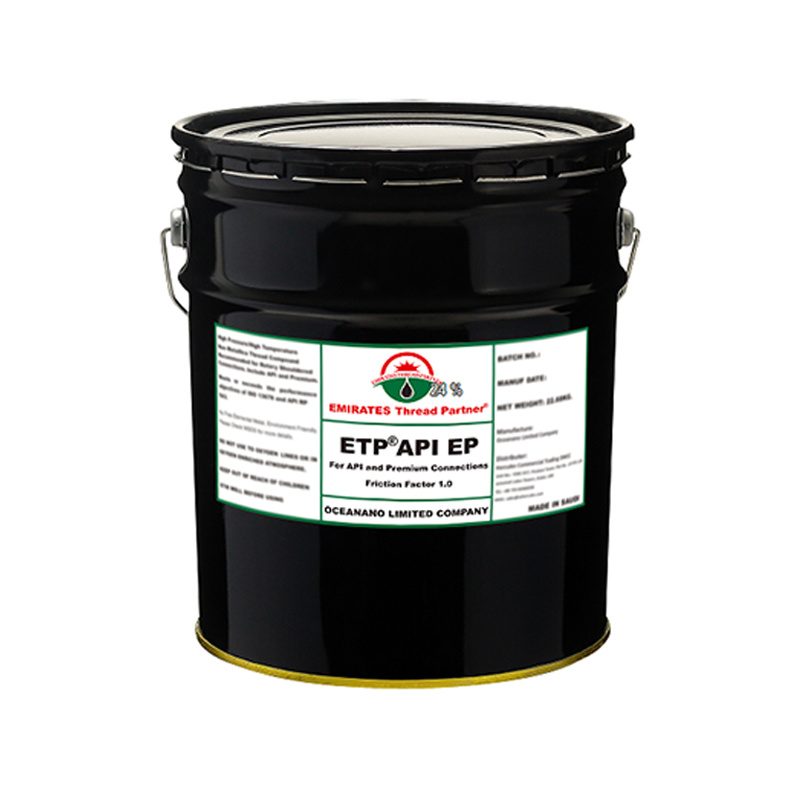

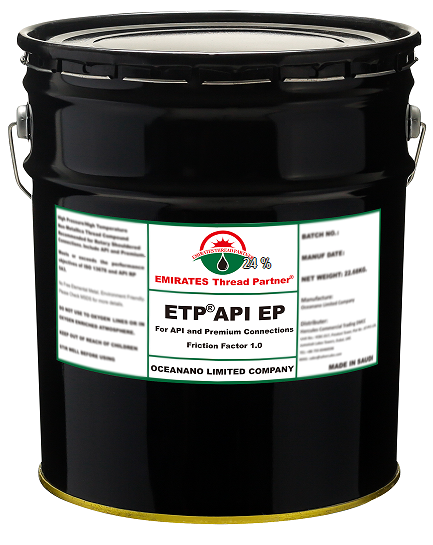

EMIRATES Thread Partner^® API EP

Product Description

EMIRATES Thread Partner^® API EP is API Modified thread compound for connection of casing, tubing, and line pipe. It delivers thread protection and conforms to the listed performance objectives in API RP 5A3/ISO13678. This superior metallic compound protects against connection galling and provides higher temperature performance.

Recommended Application

EMIRATES Thread Partner^® API EP is API Modified thread compound for all rotary shouldered connections casing, tubing and line pipe include proprietary premium connections. The special additives to resist pitting and corrosion and will protect connection against galling effectively.

Packing

Product Number	Size	Weight
ETPAPI35	3 1/2 Gallon	50lb

Typical Characteristics

Appearance	Dark Copper
NLGI Grade	1
Penetration (ASTM D217)	310-340
Weight/Litre	1.88 Kg/L
Thickener	Complex
Fluid Type	Petroleum
Dropping Point (ASTM D2265)	≥260℃ (≥500℉)
Flash Point	≥200℃ (≥392℉)
Service Rating	-18℃-260℃ (-0.4℉-500℉)
Friction Factor	1.0
4-ball EP Test, Kgf	800
Copper Corrosion (ASTM D4048)	1A
Corrosion inhibition, 5% Salt Spray 750h	<1.0
Compound stability, field service	≤25
Shelf Life (unopened)	4 years
Brushable	-18℃ (-0.4℉)
Contains	Powered graphite, lead, zinc, copper

Do not use on oxygen lines or in oxygen enriched atmospheres

key word:

Related downloads

OUR ADVANTAGES

Having a full value chain system from conceptual design to R&D and production

Oceanano has a full value chain system from conceptual design to R&D and production, which is the main support for us to continuously provide high-quality products, making us a pioneer in the cutting-edge technology of thread lubricant compounds in the field of oil and gas exploration and development.

Having a well-established research and development laboratory and an experienced and efficient research and development team

Oceanano has a well-established research and development laboratory in the field of thread lubricant compound research and development, as well as an experienced and efficient research and development team, which can efficiently provide suitable product development services for customers and extremely demanding operations to meet your needs.

The factory operates under strict quality control and manufacturing standards

The Oceanano factory operates under strict quality control and manufacturing standards. We strictly screen the materials that enter our products to ensure that the raw materials of our products meet the strict quality requirements of our factory, as high-quality raw materials ensure high-quality products.

All formulas have been validated through laboratory and on-site drilling and production

All formulations of Oceanano's high-quality thread lubricant compounds have been validated through laboratory and on-site drilling and production, and are suitable for various fields of oil and gas exploration and development. Regardless of the harsh environment and complex working conditions, Hairui Naxin has solutions.

RECOMMENDED PRODUCTS

ND7

EMIRATES Thread Partner® ND7 is the special formulated drilling thread compound, metal free, developed to environment friendly and ecologically sensitive regions. Based on Oceanano® Materials Technologies, the performance meets and exceed API RP 5A3/ISO 13678. Provide superior protection for all rotary shouldered connection (RSC), some special application of drilling products with Premium Connection (Double Shoulders, High Torque), API/NC connections. The performance provides excellent protection on anti-galling, rust, pitting, formulated additives to anti corrosion from high H2S and CO2, severe working condition such as HPHT, low temperature, and short-mid-term storage.

LEARN MORE >

ND6

EMIRATES Thread Partner® ND6 is the special formulated drilling thread compound, metal free, developed to environment friendly and ecologically sensitive regions. Based on Oceanano® Materials Technologies, the performance meets and exceed API RP 5A3/13678. Provide superior protection for all rotary shouldered connections (RSC), some special application of drilling products with Premium Connection (Double Shoulders, Hight Torque) and API/NC connections. The performance provides excellent protection on anti-galling, rust, pitting, formulated additives to anti corrosion from H2S and CO2, work in severe working condition such as HPHT, low temperature, and short-mid-term storage.

LEARN MORE >

ND5

EMIRATES Thread Partner® ND5 is the special formulated drilling thread compound, metal free, developed to environment friendly and ecologically sensitive regions. Based on Oceanano® Materials Technologies, the performance meets and exceed API RP 5A3/ISO13678. Provide superior protection for all rotary shouldered connection, Premium Connection (Double Shoulders, High Torque) and API/NC connections. The performance provides excellent protection on anti-galling, rust, pitting, formulated additives to anti corrosion from H2S and CO2, work in severe working condition such as HPHT, low temperature, and short-term storage.

LEARN MORE >

MF7

EMIRATES Thread Partner® MF7 is the special formulated thread compound, metal free, developed to environment friendly and ecologically sensitive regions. The performance meets and exceed API RP 5A3/ISO 13678. Provide superior protection for all rotary shouldered connection, some special application of Oil Country Tubular Goods (OCTG) with Premium Connections , API connections. The performance provides excellent protection on anti-galling, rust, pitting, formulated additives to anti corrosion from high H2S and CO2, working condition such as HPHT, low temperature.

LEARN MORE >

MF5

EMIRATES Thread Partner® MF5 is the special formulated thread compound, metal free, developed to environment friendly and ecologically sensitive regions. Based on Oceanano® Materials Technologies, the performance meets and exceed API RP 5A3/ISO13678. Provide superior protection for all rotary shouldered connection, Oil Country Tubular Goods (OCTG) with Premium Connection and API connections. The performance provides excellent protection on anti-galling, rust, pitting, formulated additives to anti corrosion from H2S and CO2, work in severe working condition such as HPHT, low temperature.

LEARN MORE >

MF6

EMIRATES Thread Partner® MF6 is the special formulated thread compound, metal free, developed to environment friendly and ecologically sensitive regions. Based on Oceanano® Materials Technologies, the performance meets and exceed API RP 5A3/13678. Provide superior protection for all rotary shouldered connection, some special application of Oil Country Tubular Goods (OCTG) with Premium Connection and API connections, and Drilling Connection. The performance provides excellent protection on anti-galling, rust, pitting, formulated additives to anti corrosion from H2S and CO2, work in severe working condition such as HPHT, low temperature.

LEARN MORE >
